ZKTeco 4Ports 10-100Mbps PoE Switch Price in BD

Networking Components ZKTeco 4Ports 10-100Mbps PoE Switch

ZKTeco 4Ports 10-100Mbps PoE Switch

Price 0 ৳

Status: In stock

Product Code: PR01023

Brand: ZKTeco

Model: pe041-55-c

Features

Model Number: PE041-55-C
Port: 4*10/100M RJ-45(PoE)+1*10/100M RJ-45
Network Protocol: EEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
PoE :PoE Standard IEEE802.3af /IEEE802.3at.
MDI/MDIX self-adaptation
Store-and-forward switching
Lightning protection

Hotline: 01979234344 | Corporate: 01979234319

No Brochure

Social Share:

Specification

Description

Reviews

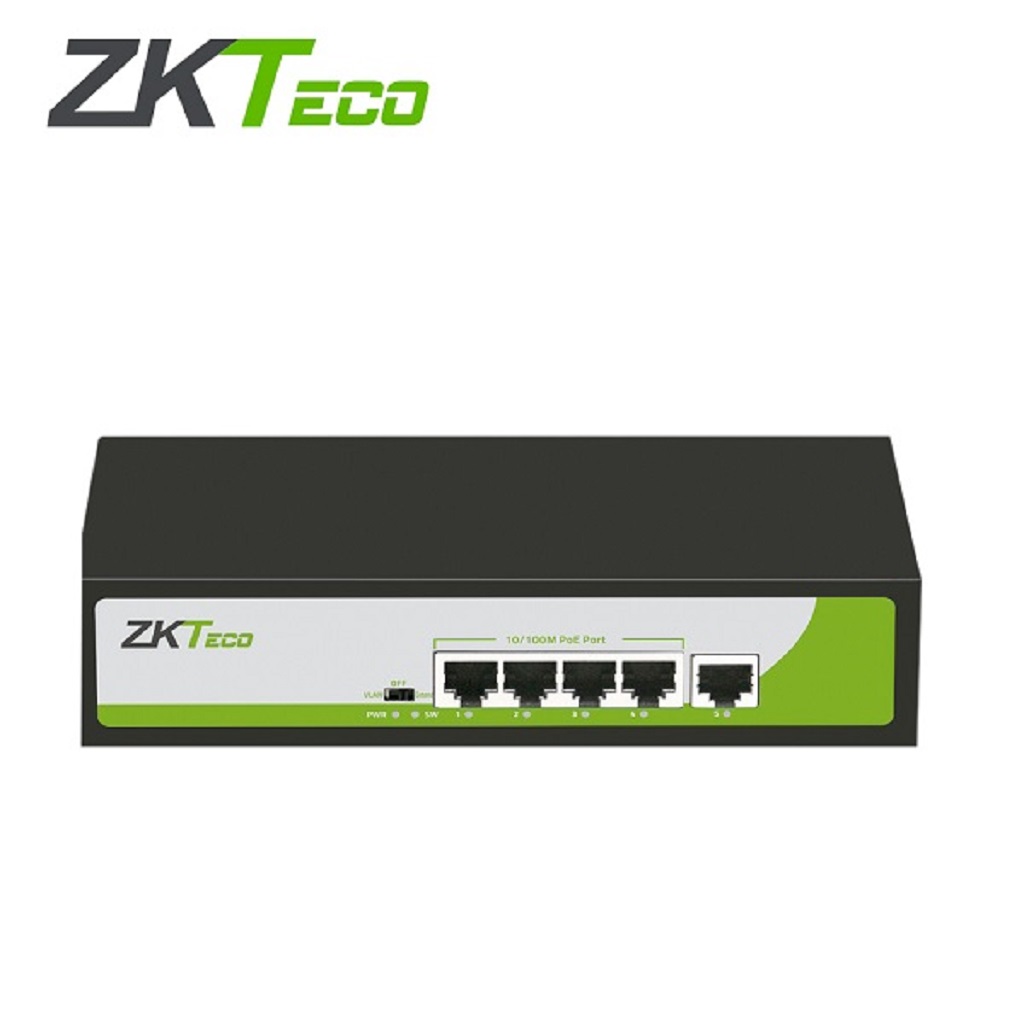

ZKTeco 4Ports 10/100Mbps PoE Switch

PE041-55-C is an advanced PoE switch providing a network point for data transmission and power supply. It has 4 PoE ports that can provide standard IEEE802.3af/at power supply through network cables. Because of the advanced self-sensing algorithm for supplying power over IEEE802.3af/at, the connected PoE or non-PoE standard equipment is safely protected.

4*10/100M RJ-45((PoE) +1*10/100M RJ-45
Conforms to IEEE802.3, IEEE 802.3u and IEEE802.3af/at
The max. PoE power output is 15.4 W (IEEE 802.3af )/ 30 W (IEEE 802.3at)
250 meters of PoE transmission distance of power and data (Cat 6)
MDI/MDIX self-adaptation
Store-and-forward switching
Lightning protection

Special Features:

Model Number: PE041-55-C
Ethernet Port: 4 PoE Ports (10/100 Mbps) 2 Uplink Ports (10/100 Mbps), All ports support MDI/MDIX self-adaptation
POE Standard: IEEE 802.3af, IEEE802.3at
PoE Consumption: Max 30W per Port, total PoE budget 60W
Network Protocol: IEEE 802.3i 10BASET, IEEE 802.3u 100BASETX, IEEE 802.3x Flow Control
Switching Bandwidth: 1.6Gbps
Packet Forwarding Rate 0.982Mpps
Buffer Memory 768KB
Mac Table Size: 1KB
MTBF: 100,000 hours
Power Input: AC220V, 50/60Hz
Lightning Protection: 2KV
Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
Working Humidity: 10% ~ 90%, non-condensing
Dimensions (L*W*H): 142 * 113 * 40 (mm)
Weight 1kg
Certification: CE/LVD EN60950, FCC Part 15 Class B, VCCI Class B, EN 55022 (CISPR 22), Class B
