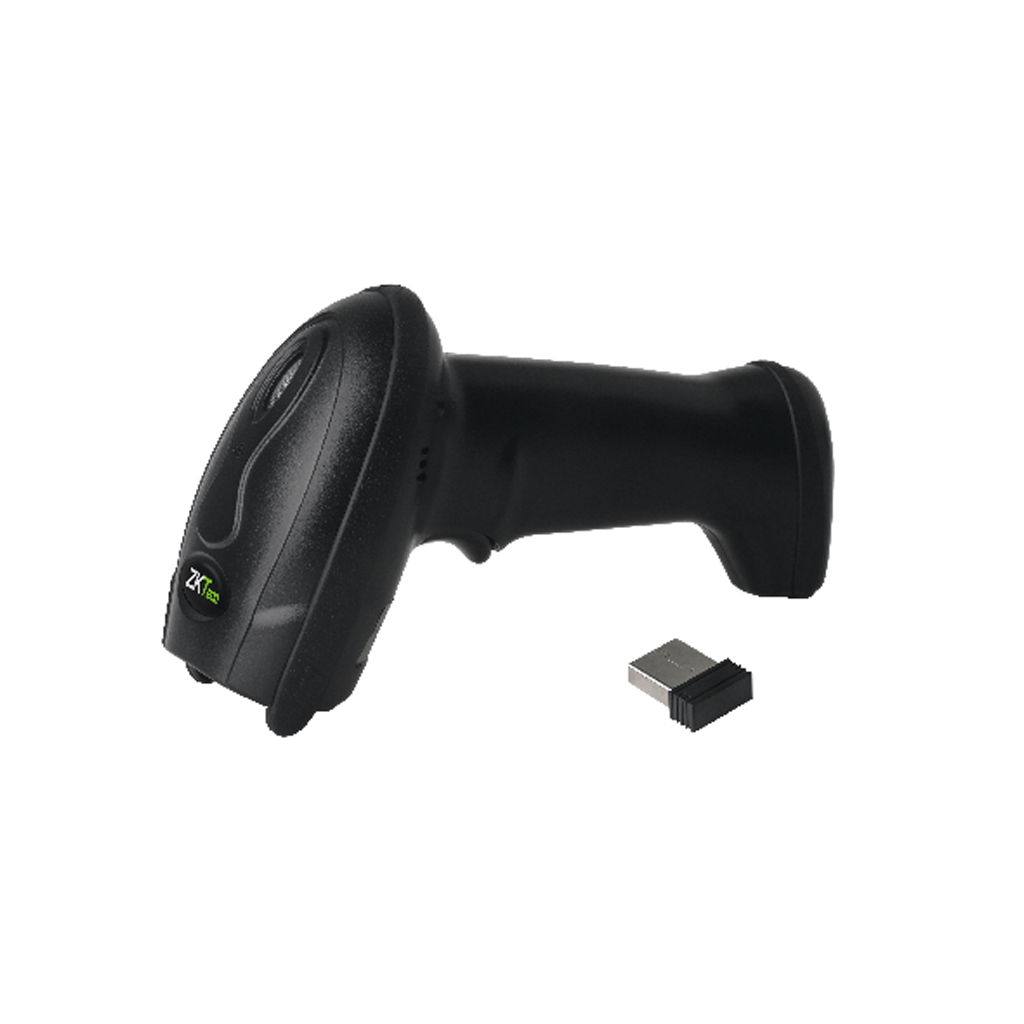

ZKTeco ZKB103 wireless industrial hand-held one-dimensional gun-type barcode scanner

Point Of Sale - POS ZKTeco ZKB103 wireless industrial hand-held one-dimensional gun-type barcode scanner

ZKTeco ZKB103 wireless industrial hand-held one-dimensional gun-type barcode scanner

Price 0 ৳

Status: In stock

Product Code: PR00536

Brand: ZKTeco

Model: ZKB103

Features

Interface type 2.4G, Standard USB (Full Speed, USB 2.0)
Light source Visible laser diode, wavelength: 525nm
Wireless standard 2.4GHz (IMS)
Light levels 5000Lux

Hotline: 01979234344 | Corporate: 01979234319

No Brochure

Social Share:

Specification

Description

Reviews

ZKB103 is a wireless industrial hand-held one-dimensional gun-type barcode scanner with good reading performance. It can easily read barcodes on different mediums such as paper, commodity, screen, etc.

The product adopts enhanced wireless 2.4G transmission technology. The outdoor environment's effective distance can reach more than 150 meters and support both wired and wireless transmission modes. It can be mainly used in mobile payment, barcode scanning, inventory checking, etc.

Digi-Mark Solution authorized distributor of ZKTeco in Bangladesh. You can buy the ZKTeco ZKB103 wireless industrial hand-held one-dimensional gun-type barcode scannerat best and dealer price from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. For Lowest, dealer and best price Contact Us at 01979-234344.

General
Weight	About 210g (without wire)
Dimensions (L×W×H)	175mm × 72mm × 100mm
Wire length	1.8m
Interface type	2.4G, Standard USB (Full Speed, USB 2.0)
Material	ABS+PC
Color	Black
User indicators	LED, buzzer
Scanning Performance
Light source	Visible laser diode, wavelength: 525nm
Processor	ARM 8-bit
Startup time	4s
Analytical ability	≥3mil/0.076mm@PCS90%
Depth of focus	0-50cm
Scanning mode	Manual scanning, Constant light scanning
Reading angle	Roll: ±30°; Pitch: ±60° (or greater); Yaw: ±50° (or greater)
Input power	85mA @ 5V DC
Scanning speed	250 times per second
Light levels	5000Lux
Decode capabilities	EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, CODE 39, CODE 93, CODE128, Codabar, GS1-128, Interleaved 2 of 5, MSI, ISBN/ISSN, ISBT, etc.
Wireless Performance
Wireless standard	2.4GHz (IMS)
Transmission distance	150m (Outdoor open environment)
Storage capacity	100000 commodity codes (16MB)
Battery capacity	1600mAh
Battery charging time	About 5 hours
Continuous working hours	≥20hours
Standby time	4 weeks
Environmental
Operating temperature	0°C to 50°C
Storage temperature	-30°C to 60°C
Relative humidity	5% to 95% (Non condensing state)
Protection level	IP54
Drop Test	1.8m
High and low temperature test	Work properly for 30 minutes under simulation of temperature of -30°C and 60°C
Transport vibration test	10H@125RPM
