ZKTeco Z8608NF-8F NVR Price in Bangladesh

Security Surveillance ZKTeco Z8608NF-8F Network Video Recorder

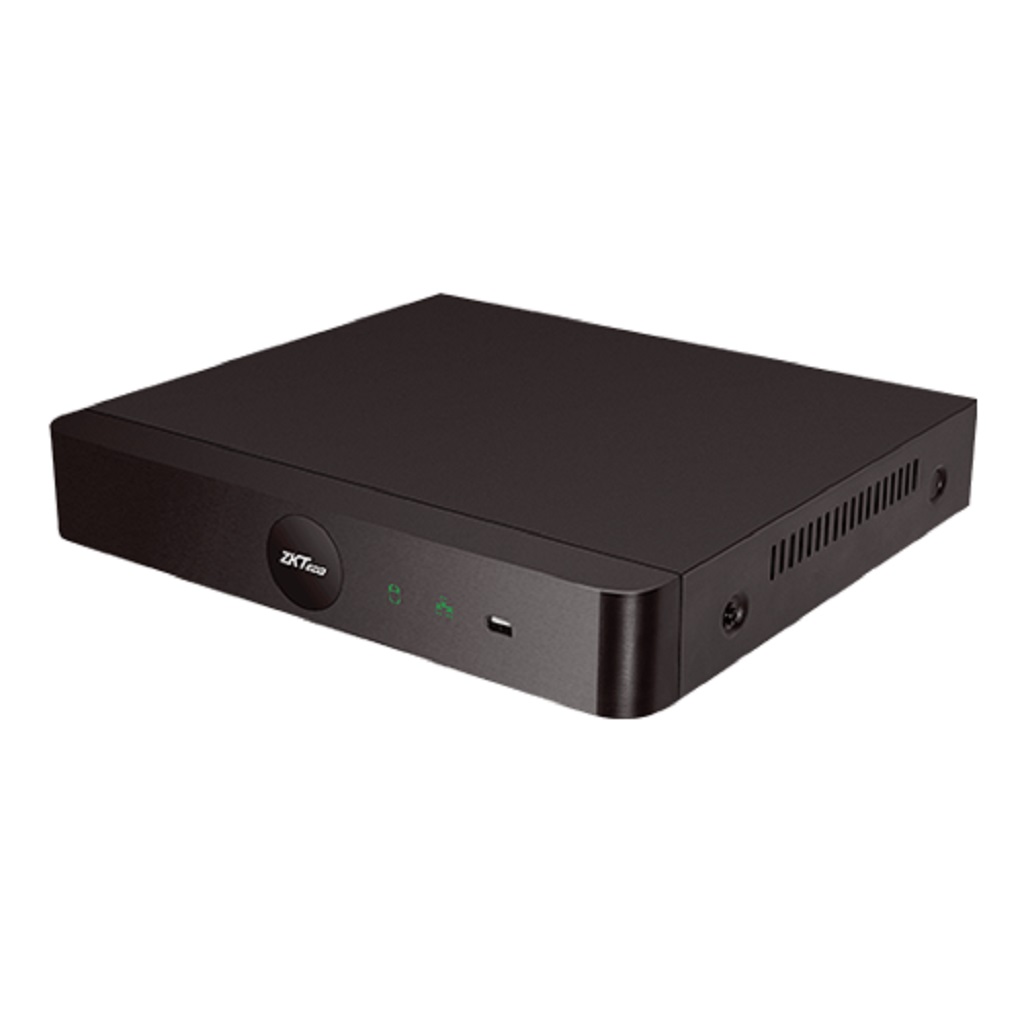

ZKTeco Z8608NF-8F Network Video Recorder

Price 0 ৳

Status: In stock

Product Code: PR00571

Brand: ZKTeco

Model: Z8608NF-8F

Features

H.265+/H.265/H.264 decoding
Support 36-channel 4K IP cameras input & preview
Support 16 channels realtime playback synchronously
16 channels realtime facial recognition with face capture cameras

Hotline: 01979234344 | Corporate: 01979234319

Download Brochure

Social Share:

Specification

Description

Reviews

ZKTeco Z8608NF-8F Network Video Recorder

System Overview

ZKTeco BioFace Lite NVR series is one of the idealist considerations for small-to-medium scale facial recognition surveillance and analysis project with the ZKTeco industry-leading AI algorithm.

This model supports 16 channels of real-time facial recognition based on a database that stores up to 100,000 face templates and displays real-time facial recognition results.

With Blacklist/Whitelist management, the solution can trigger an alarm, take a snapshot, or record faces for further analysis and potential security improvement.

Powered by the robust interoperability and ONVIF Profile S, the series is compatible with plenty of 3rd-party IPCs to implement facial recognition.

Digi-Mark Solution authorized distributor of ZKTeco in Bangladesh. You can buy the ZKTeco Z8608NF-8F NVR at best and dealer price from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. For Lowest, dealer and best price Contact Us at 01979-234344.

System
Main Processor	Multi-core embedded processor
Operating System	Embedded LINUX
Video and Audio
Max IPC Input	8CH
Two-way Talk	Support
Audio Compression	G.711u
Live View
Display Split	1/4/8 CH
Resolution	8MP (38402160) / 5MP (25921944) / 2MP (19201080) / 1.3MP (12801024) / 1MP (1280720) / SVGA (1024768)
Live View Capability	4CH@8MP(25/30fps) / 8CH@D1((25/30fps)
Recording
Video Compression	H.265+ / H.265 / H.264
Recording Resolution	4K/5MP/3MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Max. Decoding Capability	8MP@25/30fps
Incoming Bandwidth	128Mbps
Bit rate	Main Stream: 256Kbps ~ 8192Kbps Sub Stream: 50Kbps ~ 700Kbps
Record Mode	Schedule, Manual, Motion Detection, IVA Events Alarm
Record Interval	1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Playback and Backup
Playback Channel	8CH Synchronously Playback
Search Mode	Time/ Date, Alarm Types, IVA Search, Face retrieval
Playback Function	Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen
Backup Mode	USB Device / Network Remote
Facial Recognition
Performace	8 CH face recognition with face detection camera 4 CH facial recognition with regular camera
Face Processing Speed	up to 25 Faces/Second
Face Templates	50,000 pictures
Face Library	Black List/White List/Other List
Facial Recognition Channels	8CH
Alarm Linkage Actions	Recording/Buzzer/Monitoring/Center/FTP Upload/Email
Create Face Templates	Capturing by Preview/Import, App collect (Antarview Pro)/VMS (AntarVis 2.0) Face Database by USB Device
Search by Face	Support
IVA Alarm
Local IVA Functions	Line Crossing / Target Counting / Object Left/ Lost / Intrusion / Scene Change / VQD
Regular Detection	Motion Detection / Video Shelter / Video Loss
AI Search	Support search target video by multiple intelligent conditions
Network
Network Protocol	TCP/IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPoE, UPnP, NTP, P2P, ONVIF
Max. Online User	5
Web Browser	IE / Google Chrome / Firefox / Safari
Operation System	Windows
Management Platform	AntarVis 2.0 / ZKBioSecurity IVS / BioAccess IVS
Mobile Application	AntarView Pro (iOS & Android)
P2P Cloud Service	Support
Interoperability	ONVIF Profile S, SDK, CGI, API
Storage & Auxiliary Interface
SATA Ports	2 SATA Ports, Up to 8 TB capacity for each HDD
eSATA	N/A
Raid 0/1/5/6/10	N/A
HDMI	1*HDMI (4K)
VGA	Support
Network Interface	2 RJ-45 Ports (10/100/1000Mbps)
PoE Ports	N/A
USB	2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 )
Audio Input/Output	43,831
Alarm Input/Output	43,925
RS-485	Support
Power
Power Supply	DC 12V/3A
Power On/Off Switch	N/A
Power Consumption	20W (without HDD)
General
Casing	1.5U
Working Temperature	-10°C ~ 55°C / 14°F ~ 131°F
Working Humidity	10% ~ 90%
Dimensions (LWH)	325 * 246 * 50 (mm)
Net Weight	2.5kg (without HDD)
Gross Weight	3kg (without HDD)
