ZKTeco Z8304XE-SL 4-Channel DVR Price in Bangladesh

Security Surveillance ZKTeco Z8304XE-SL 4-Channel 1080P Lite Digital Video Recorder

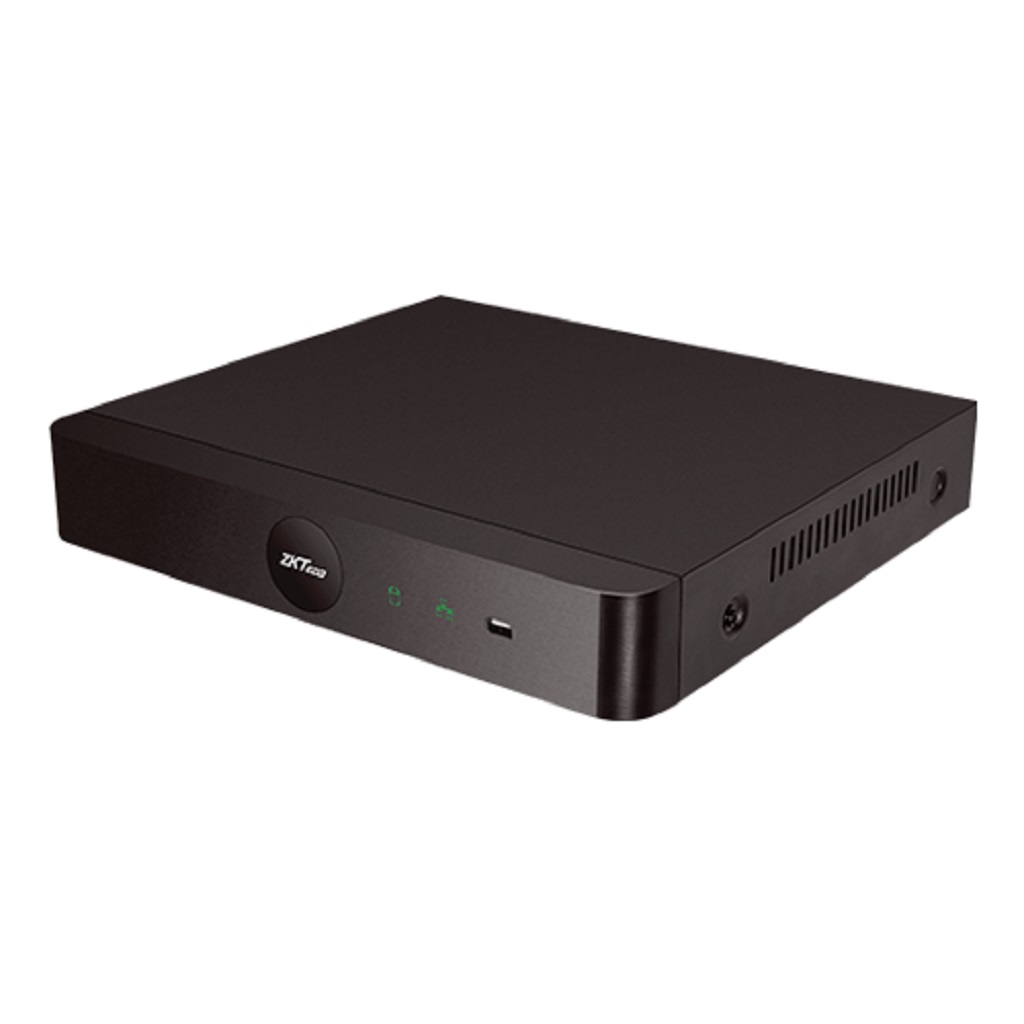

ZKTeco Z8304XE-SL 4-Channel 1080P Lite Digital Video Recorder

Price 0 ৳

Status: In stock

Product Code: PR00570

Brand: ZKTeco

Model: Z8304XE-SL

Features

H.264/H.264+ Decoding
Support AHD/TVI/CVI/CVBS/IP Video Input
Support HDMI up to 1080P output
Support 4CH 1080P Lite Resolution Preview and Playback

Hotline: 01979234344 | Corporate: 01979234319

Download Brochure

Social Share:

Specification

Description

Reviews

ZKTeco Z8304XE-SL 4-Channel 1080P Lite Digital Video Recorder

System Overview

ZKTeco Z8000XE-S series DVR could deliver up to excellent 1080P Lite resolution excellent image over advanced H.264+ compression. It's the ideal consideration for the balance of quality, performance and budget. The friendly GUI provides intuitive shortcut operations, remote control and management, exible storage, smart search and playback. It's widely used for the government, banking sectors, manufacturers, educational or commercial projects. Powered by the strong interoperability and Onvif Prole S, it's compatible with a variety of 3rd party crossing platform VMS.

Digi-Mark Solution authorized distributor of ZKTeco in Bangladesh. You can buy the ZKTeco Z8304XE-SL 4-Channel DVR at best and dealer price from Our Head Office (Dhaka, Motijheel), IDB branch, Multiplan branch, Uttara Branch, Chittagong (chattagram) showrooms. For Lowest, dealer and best price Contact Us at 01979-234344.

Model	Z8304XE-S
System
Processor	Multi-core Embedded Processor
Operation System	Embedded Linux
I/O port and Storage
Network Interface	1 RJ-45 port (10/100Mbps)
USB	3*USB 2.0
HDMI	1*1080P HDMI
VGA	1*VGA
Alarm Input	N/A
Alarm Output	N/A
RS-485	N/A
HDD	1 SATA, up to 8TB capacity for each HDD
e-SATA	N/A
Playback and Backup
Playback Channel	4
Search Mode	Time/Date, MD and Exact Search
Playback Function	Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next Camera, Previous Camera, Full Screen, Shue, Backup Selection, Digital Zoom
Backup Mode	USB device/Network
Network
Network Protocol	HTTPs, HTTP, TCP/IP, IPv4, UPnP, Onvif 2.6, RTSP, RTCP, UDP, SMTP, SNMP, Multicast, IGMP, NTP, DHCP, DNS, DDNS, FTP, P2P
Max. Online User	5
Mobile App	Antarview Pro (iOS & Android)
Interoperability	Onvif Profile S, SDK
Audio and Video
Audio Compression	G.711a
Audio Bit Rate	64Kbps
Video Input	4ch BNC interface(1.0Vp-p, 75 Ω)
AHD Input	1080P, 720P
TVI Input	1080P 720P
CVI Input	1080P, 720P
IP Camera Input	Up to 4ch 2MP
Hybrid Mode	2ch(AHD/TVI/CVI/CVBS)+2ch(IP)
Two-way Talk	1-Channel Input, 1-Channel Output, RCA
Recording
Video Compression	H.264/H.264+
Record Resolution	4ch 1080P Lite@25fps
Frame Rate	1fps-25fps
Incoming Bandwidth	32Mbps
Bitrate	11Kbps-2291Kbps
Record Mode	Timing and alarm record, Timing Record, Alarm Record
Power
Power supply	DC 12V2A
Consumption	≤10W without HDD
General
Working Temperature	0°C~+55°C
Working Humidity	10~90%
Dimensions	233mm254mm42mm
Net Weight	0.91KG
